SF-B122049 How to Replace The Console

How to replace the console on your bike

Here is a quick guide instructing you on the proper procedure to successfully replace the console on your bike.

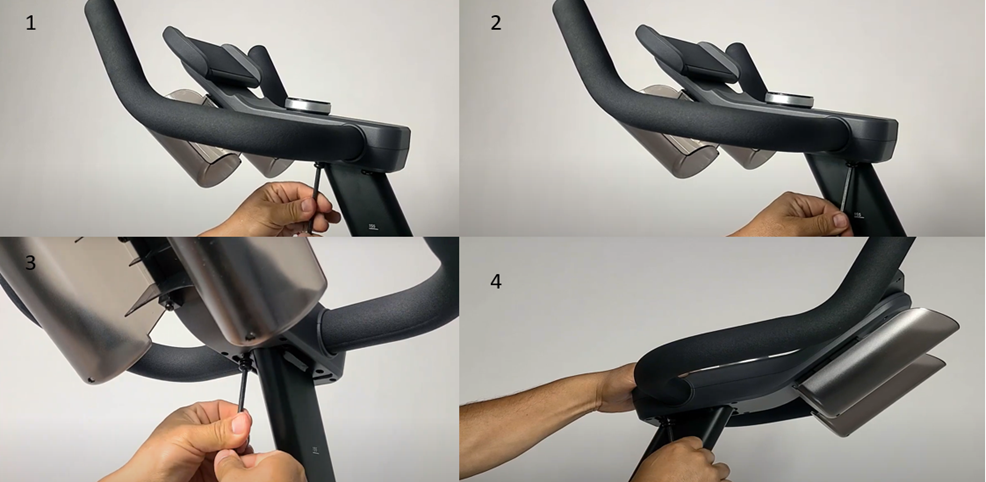

STEP 1: Using a #5 Allen Key remove the 4 bolts under the handlebar.

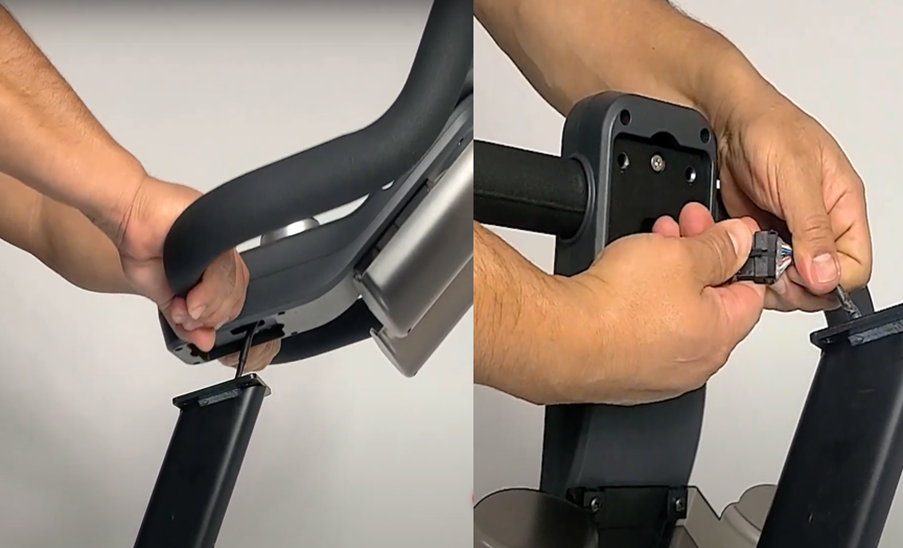

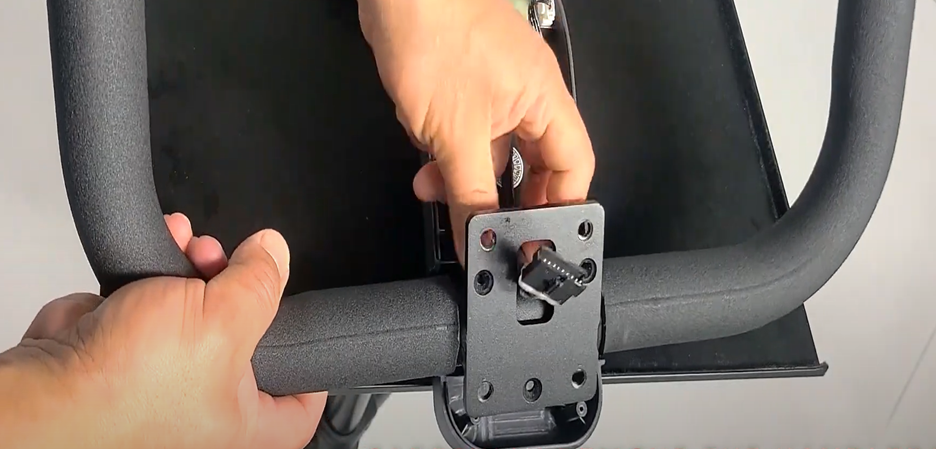

STEP 2: Remove the handlebar and disconnect the signal wire.

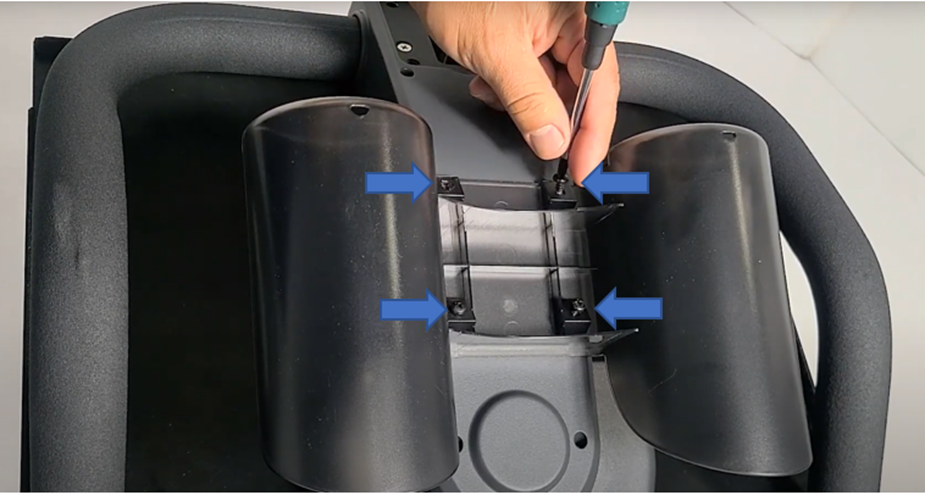

STEP 3: Using a Phillips screwdriver remove the cup holder.

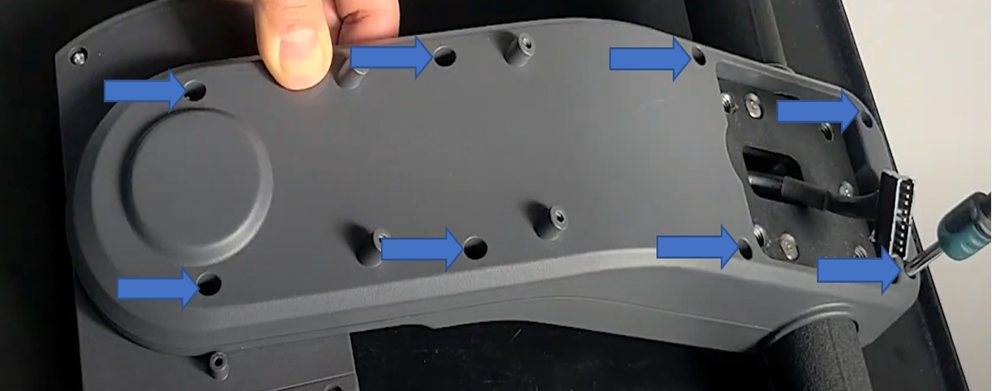

STEP 4: Using a Phillips screwdriver, remove the eight bottom console cover screws.

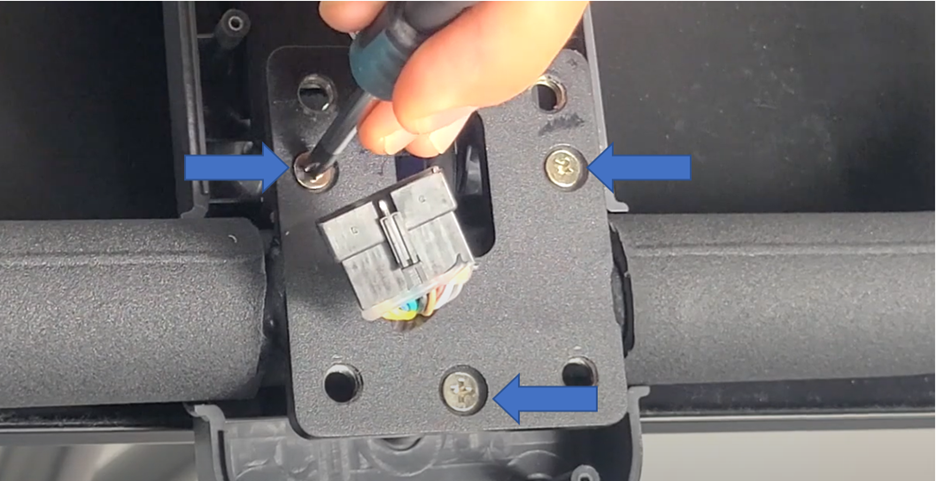

STEP 5: Remove the handlebar screws to separate the console cover. Carefully, remove the handlebar from the top console cover.

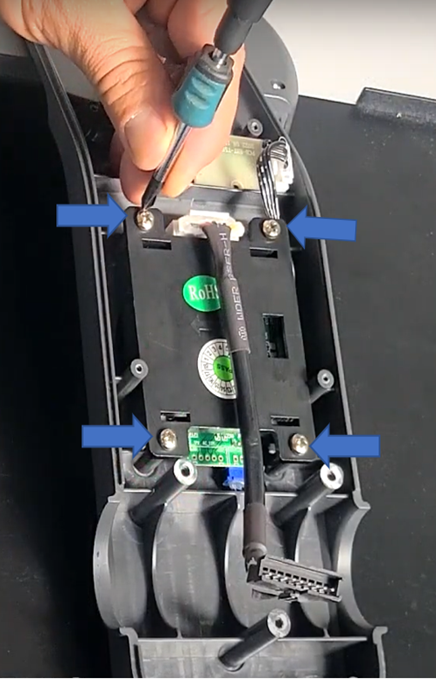

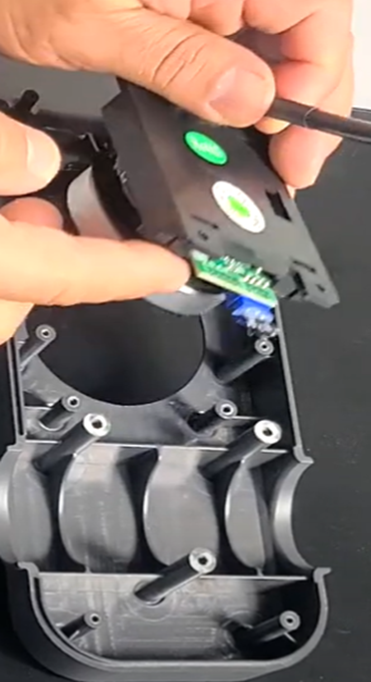

STEP 6: Remove the screws from the console and proceed to remove the actual console.

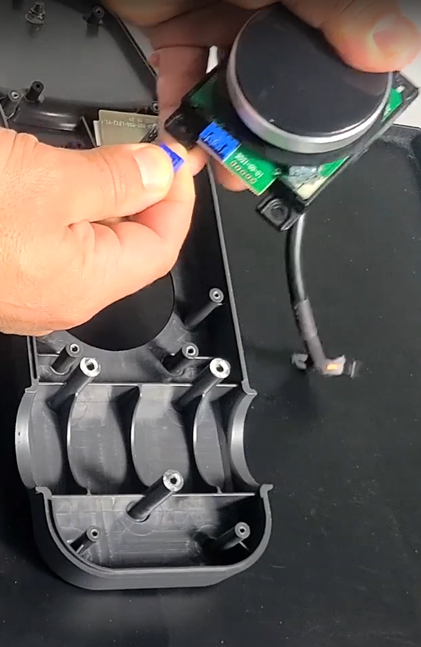

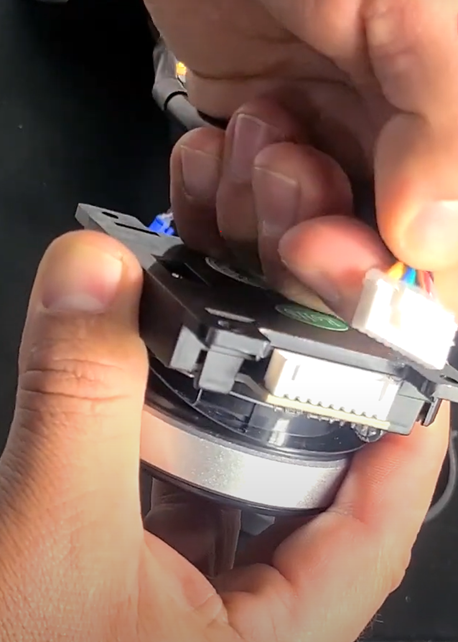

STEP 7: Disconnect the Bluetooth and signal wire.



STEP 8: Install the replacement Console.


For more information, please see the video below:
