Jump Ring Troubleshooting

Jump Ring Troubleshooting and Correction

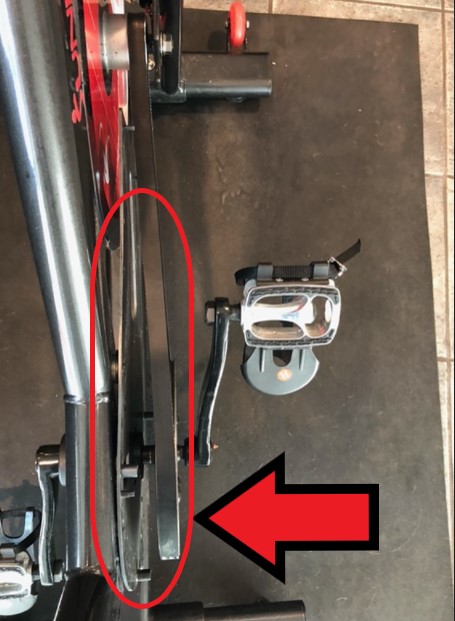

Has your bikes Belt fallen off between the Middle Axle Pulley and the frame of the bike? Has the Middle Axle Pulley started rubbing on the inside of the Outer Belt Cover? We will need to do the following to address these issues to clear a Jump Ring (C Clip, Snap Ring) problem.

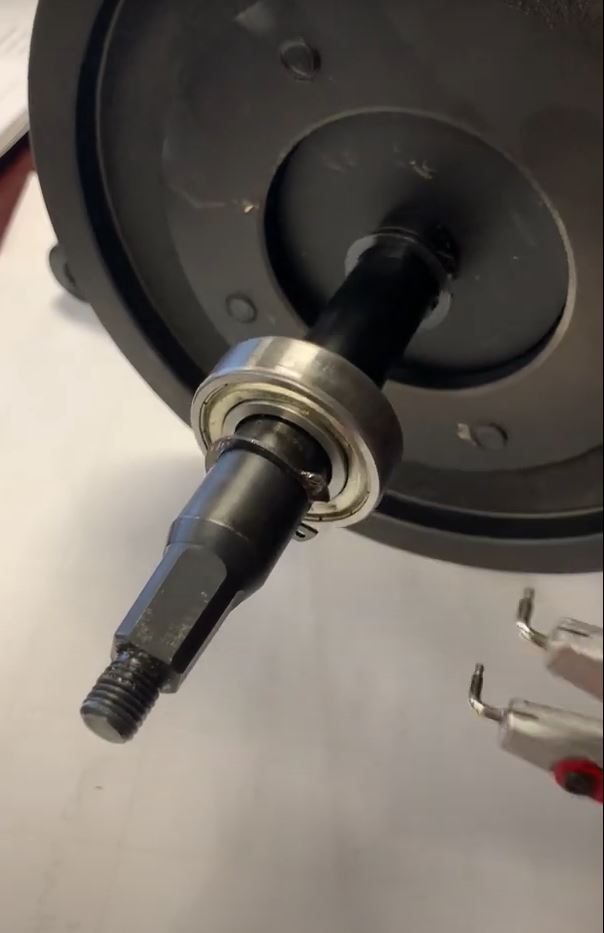

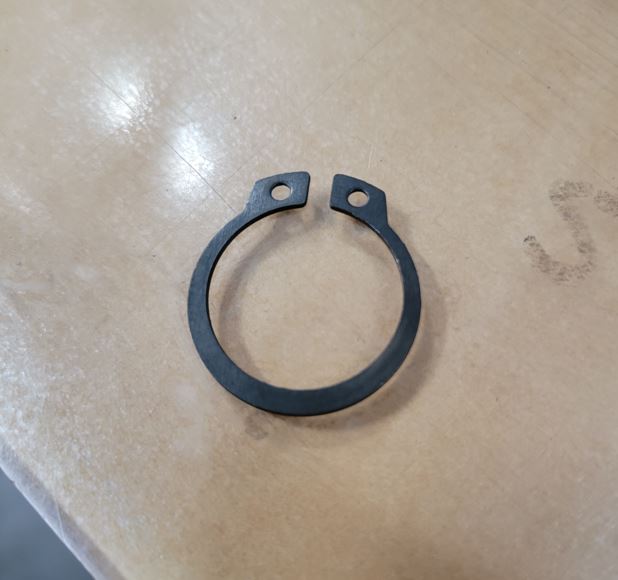

The Jump ring, is a part inserted in the groove of the middle axle to keep the middle axle from shifting left or right during your ride. All you need to do is ensure that this piece is secure in the groove on the middle axle and flush against the frame.

In order to expose the groove for the C-Clip, the belt does need to be removed (to the outside of the bike), as illustrated in the videos below. This is in order to push the middle axle back over to the left and secure the left jump ring back into its groove.
With this in place, you can reattach the belt (video provided) and continue on your ride.
Please inspect and make the adjustment with the current jump right that is installed on the bike before ordering a new jump ring.



For additional assistance, email support@sunnyhealthfitness.com.
