ASUNA 7750: Console Replacement

How to replace the console on your Asuna treadmill



Here is a quick guide instructing you on the proper procedure to successfully replace the console on your Asuna treadmill.

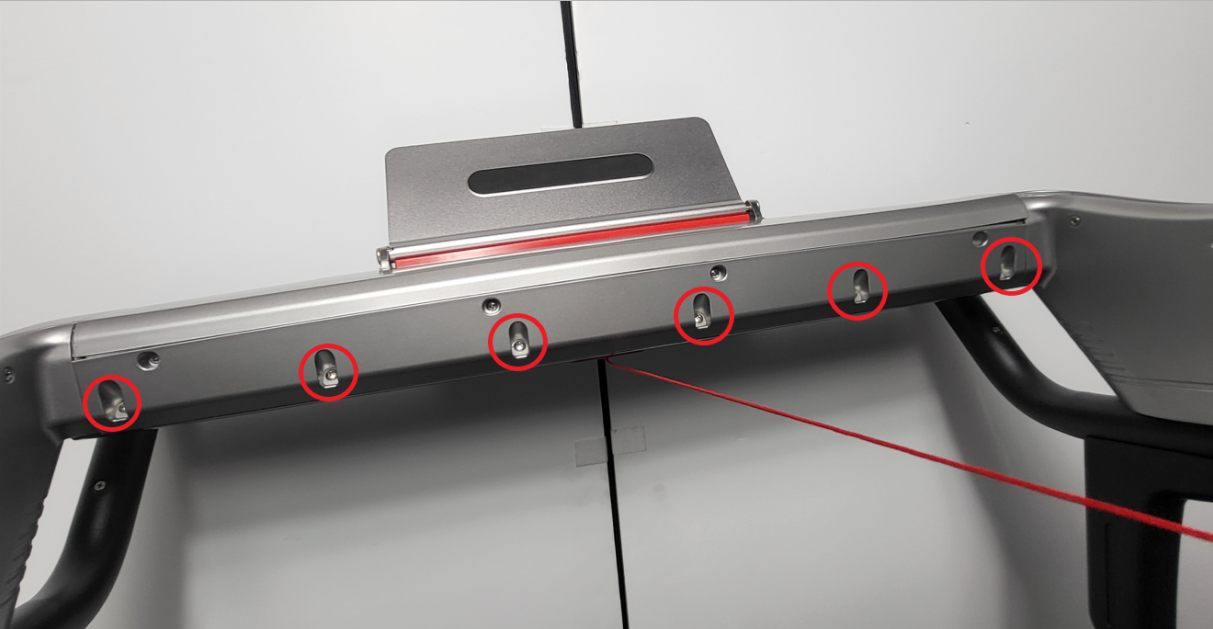

STEP 1: Using a Phillips screwdriver, remove all six screws from the bottom of the console.

A picture containing electronics, lever, indoor

Description automatically generated

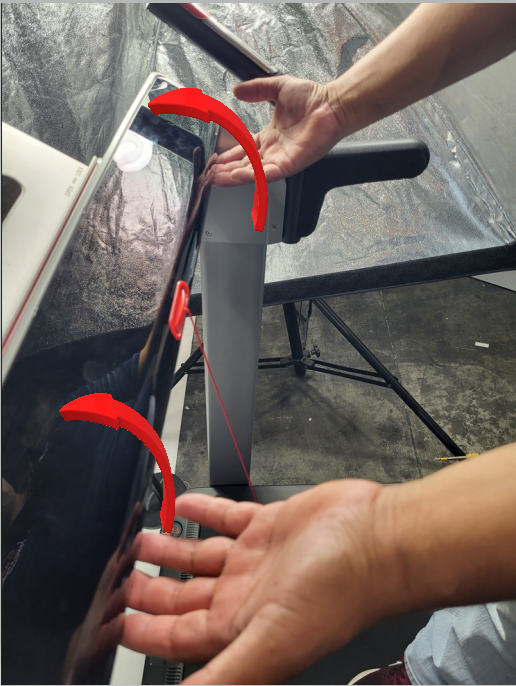

STEP 2: Pull the console carefully from the edge and detach it from the base. Afterward, place it on the frame.

A picture containing person, bicycle, outdoor

Description automatically generated A close-up of a machine

Description automatically generated with low confidence

A picture containing auto part, machine, electronics, electronic engineering

Description automatically generated

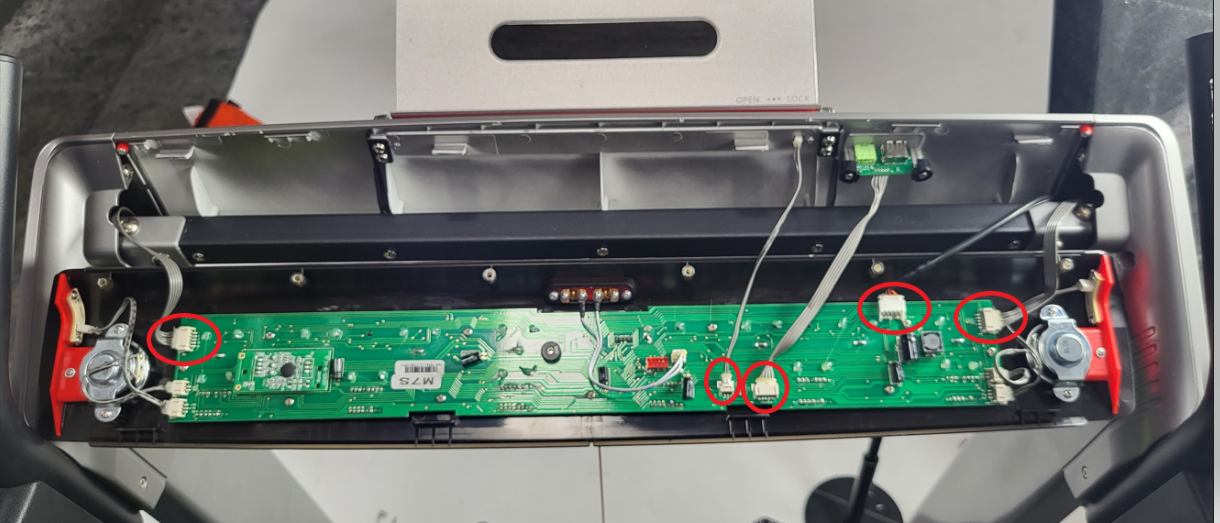

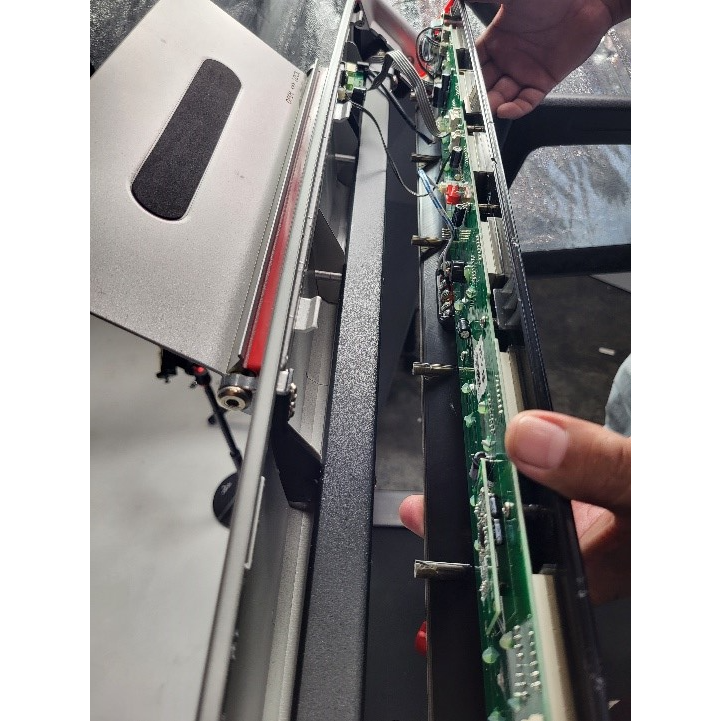

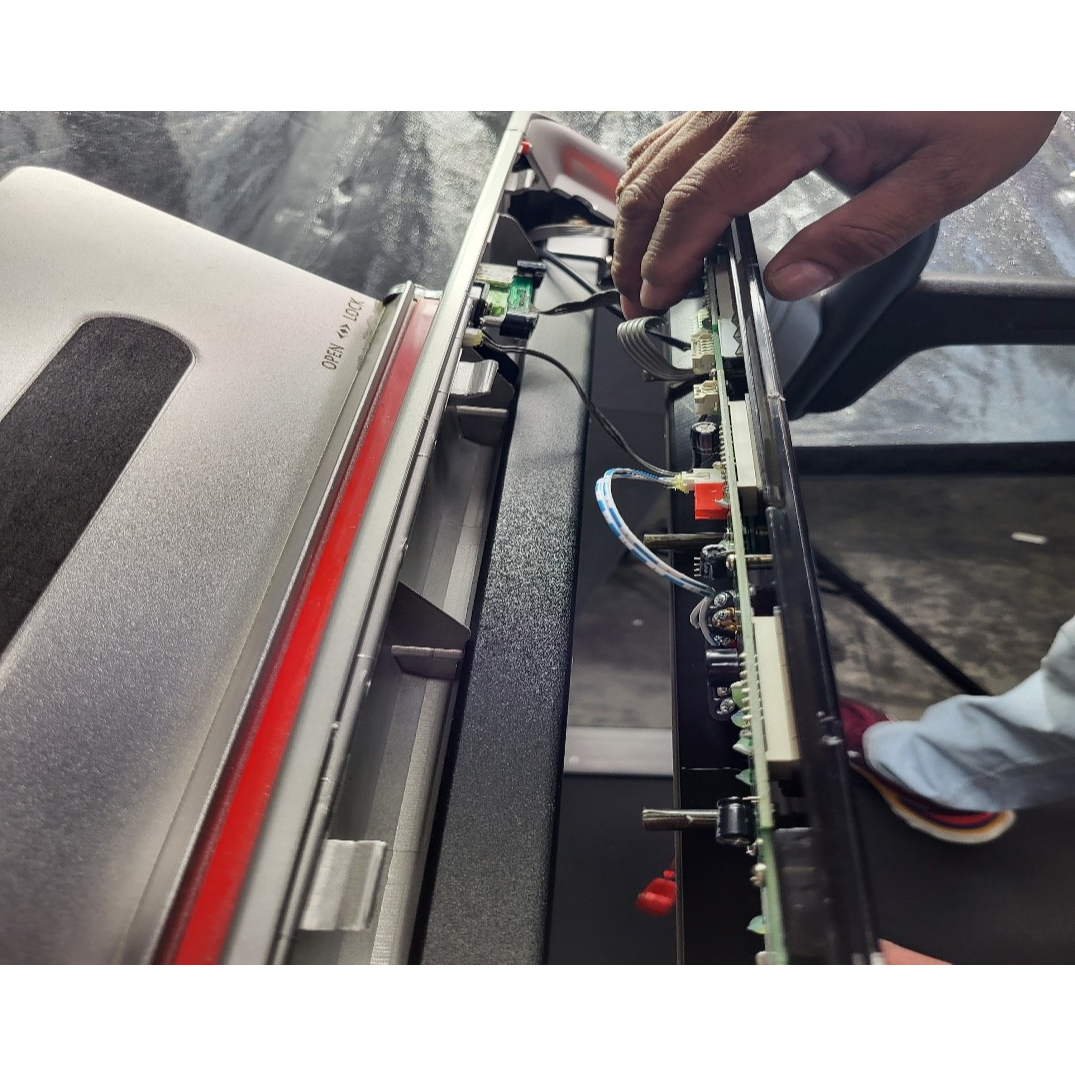

STEP 3: Carefully disconnect all five connectors from the console and remove the console.

A picture containing machine, electronics, electronic engineering, circuit

Description automatically generated A treadmills in a gym

Description automatically generated with low confidence

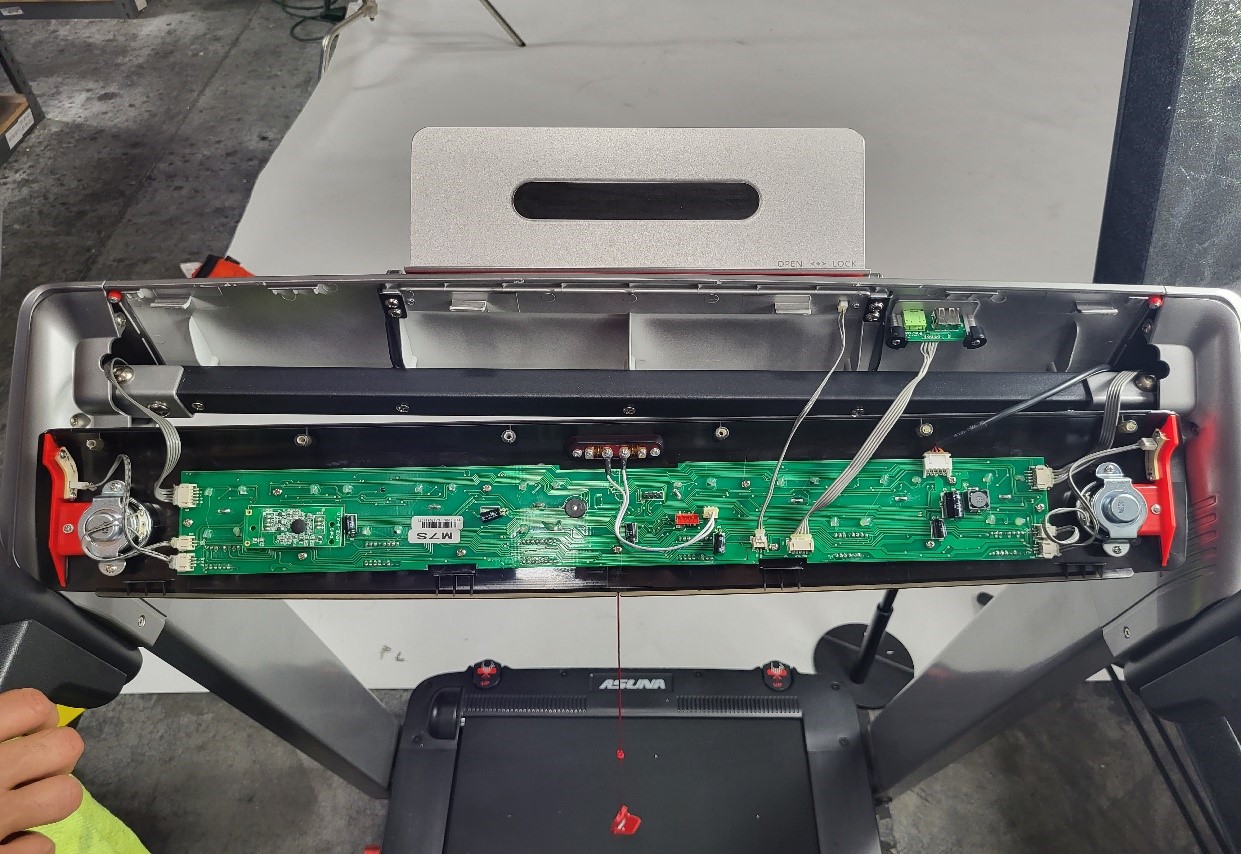

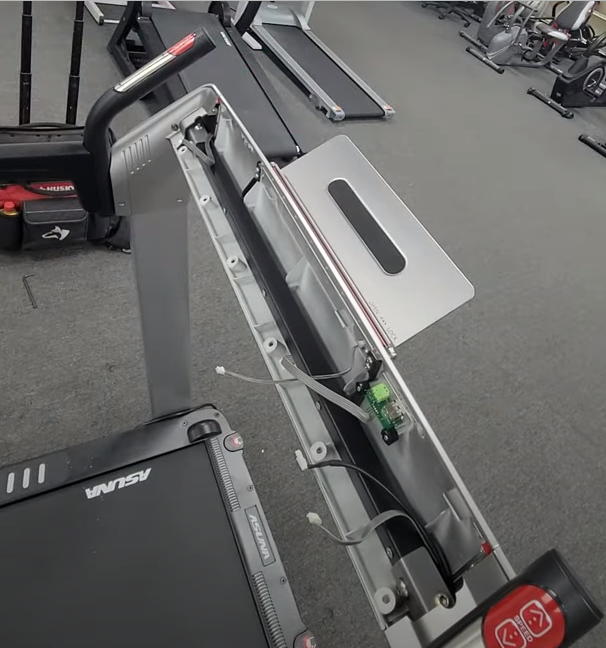

STEP 4: Install the new console. Make sure to re-plug all the wires.

A picture containing machine, indoor, person, table

Description automatically generated

A picture containing machine, electronics, electronic engineering, circuit

Description automatically generated

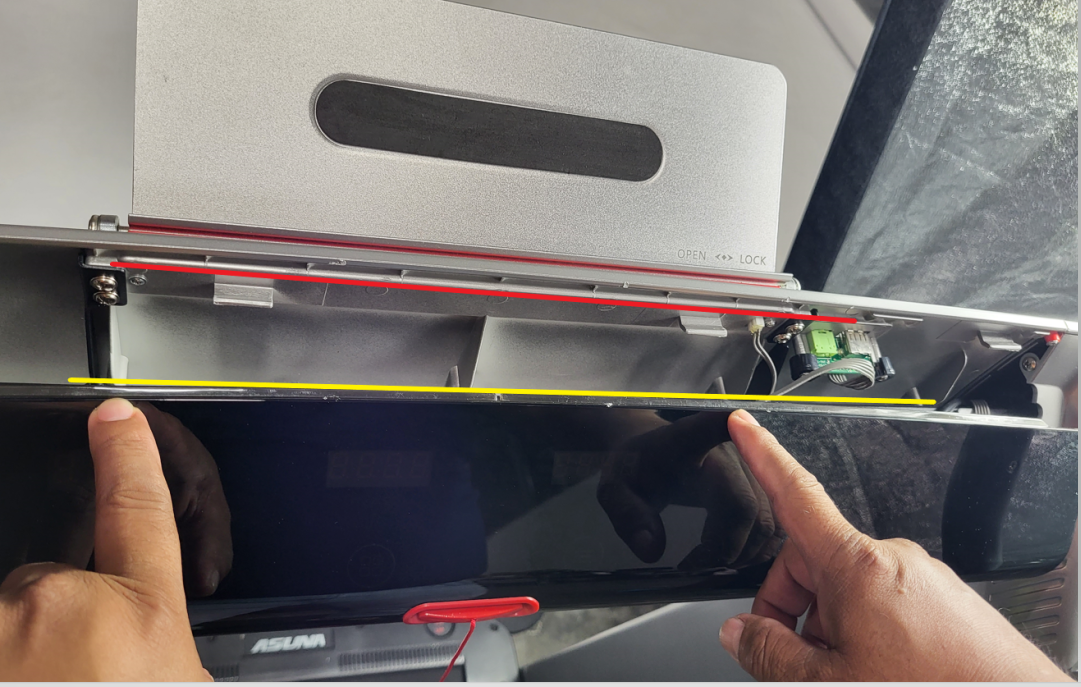

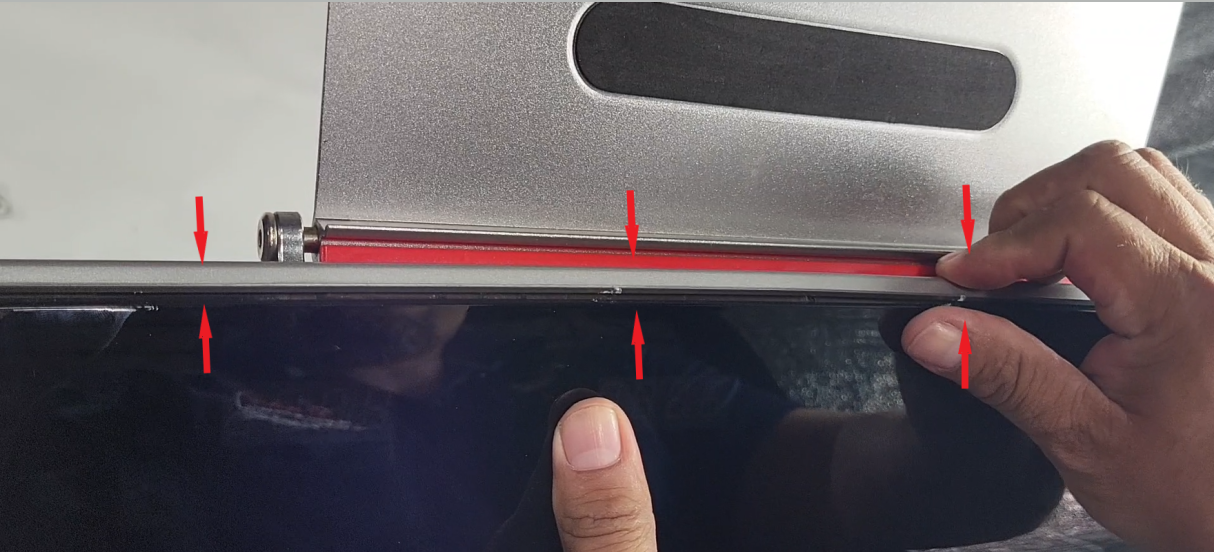

STEP 5: Prior to installing, make sure to align the console with the base of the frame. Once aligned, press the edge of the console to make sure it is properly seated in place. A close-up of a machine

Description automatically generated with low confidence

A picture containing person, indoor

Description automatically generated

A picture containing person, car, hand, indoor

Description automatically generated



STEP 6: Install the screws back in place to secure the console.

A picture containing electronics, lever, indoor

Description automatically generated



For more information, please see the video below:
