SF-T7515SMART Motor Calibration

How to Calibrate the Motor



Here is a quick guide instructing you on the proper procedure to successfully calibrate the motor on the treadmill when experiencing surge issues.





STEP 1: Press the "START" button to initiate.



STEP 2: Press and hold the "PROG"+"MODE" buttons. The screen will display F1.

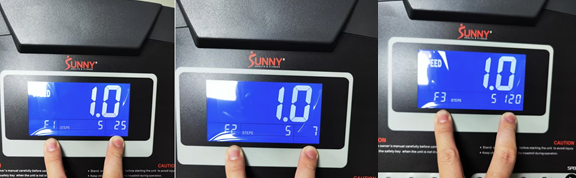

STEP 3: Press the "MODE" button to view F1-25, F2-7, and F3-120



STEP 5: If the parameters are incorrect, then adjust them by pressing the +/- buttons to change the values.





For more information, please see the video below:
