Treadmills: Control Board Reset

How to reset the control board on your treadmill



Here is a quick guide instructing you on the proper procedure to successfully reset the control board on your treadmill.

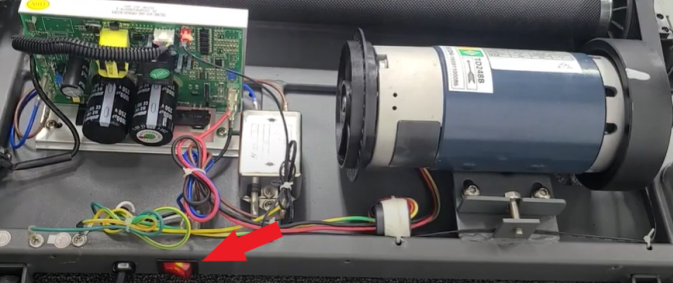

STEP 1: Remove the motor cover then power off the unit and disconnect the power cord.

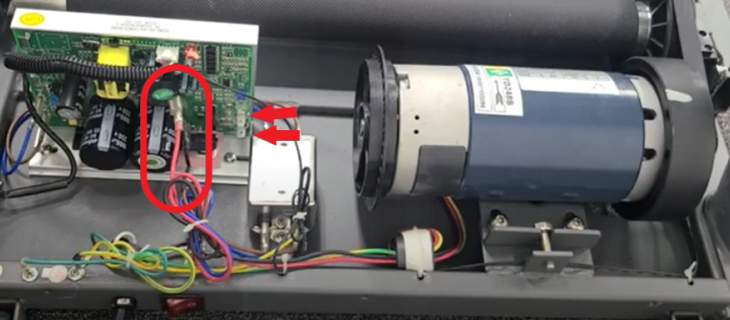

STEP 2: Disconnect the Red and Black motor wires from the control board.

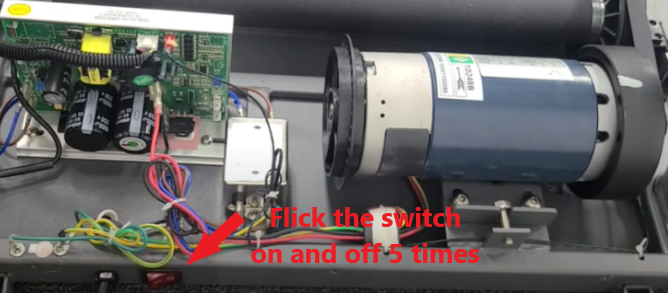

STEP 3: With the power cord unplugged, flip the power switch "on/off" 5 times to drain the electrical current from the control board.

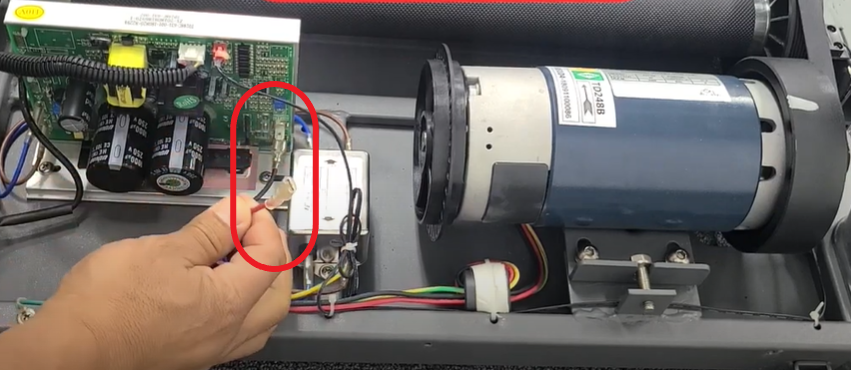

STEP 4: Reconnect the Red and Black motor wires to the control board and plug the unit into a power source.

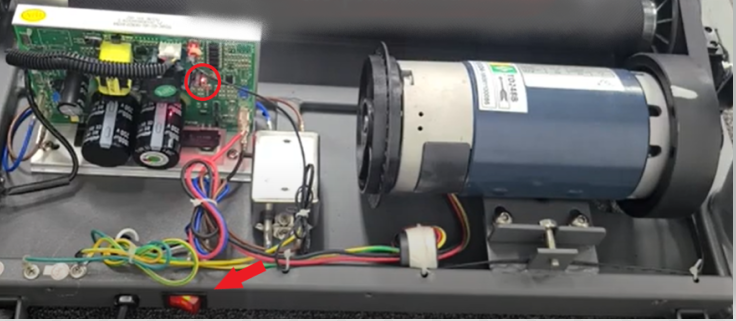

STEP 5: With the unit plugged into a power source, the power switch will light up and the control board will have a flashing LED light



For more information, please see the video below:
