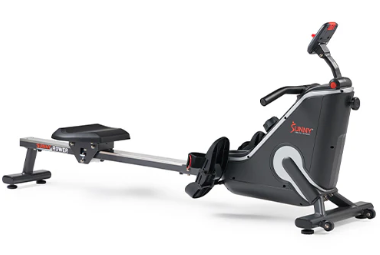

SF-RW523043 Smart Magnetic Rowing Machine

Comprehensive Compilation Guide

Welcome to our comprehensive maintenance guide for the SF-RW523043. This article provides detailed, step-by-step instructions to help you manage repairs and replacements efficiently. Here's what you'll find:

Component Removal: Learn how to remove the covers, left and right pedals, and gain full access to the internal components of the unit to begin your maintenance tasks.

Part Replacement: Step-by-step guidance on removing and replacing the volute spring, inertial wheel, belt, and tension wire, ensuring your equipment continues to function smoothly.

Reassembly: Detailed instructions for reinstalling the inertial wheel, covers, and tension knob, helping you complete your maintenance with confidence and precision.

Each section is time-stamped for easy navigation, helping you complete the tasks quickly and keep your unit in excellent working condition.

TABLE OF CONTENT

🔧 00:10 | HOW TO REMOVE THE COVERS
🔧 00:20 | HOW TO REMOVE THE LEFT PEDAL
🔧 01:04 | HOW TO REMOVE THE RIGHT PEDAL
🔧 02:09 | HOW TO REMOVE THE COVERS
🔧 03:03 | HOW TO REMOVE THE VOLUTE SPRING INERTIAL WHEEL AND BELT
🔧 04:01 | HOW TO REMOVE THE BELT
🔧 04:11 | HOW TO REMOVE THE INERTIAL WHEEL
🔧 05:28 | HOW TO REPLACE THE TENSION WIRE ON THE INERTIAL WHEEL
🔧 06:22 | HOW TO INSTALL THE INERTIAL WHEEL
🔧 08:11 | HOW TO REMOVE THE VOLUTE SPRING AND BOX ASSEMBLY
🔧 18:10 | HOW TO INSTALL THE COVERS
🔧 18:21 | HOW TO INSTALL THE TENSION KNOB

For more information, please see the video below:
