Adjusting/Aligning The Running Belt (SF-T1407M)

Adjusting The Running Belt



Belt Shifting to the right


  • If the Running Belt moves to the right, turn the Adjustable Bolt on the right side ¼ turn clockwise,
    then turn the left Adjustable Bolt ¼ turn counter-clockwise. If the Running Belt does not move, repeat this step until it centers. (Note: to check if the running belt is shifting back in place you will need to walk on the treadmill after adjusting the bolts)

alaigning_running_belt_2.jpg alaigning_running_belt_22.jpg



Belt Shifting to the left


  • If the Running Belt moves to the left, turn the Adjustable Bolt on the left side ¼ of a circle clockwise, then turn the right Adjustable Bolt ¼ turn counter-clockwise. If the Running Belt does not move, repeat this step until it centers. (Note: to check if the running belt is shifting back in place you will need to walk on the treadmill after adjusting the bolts)

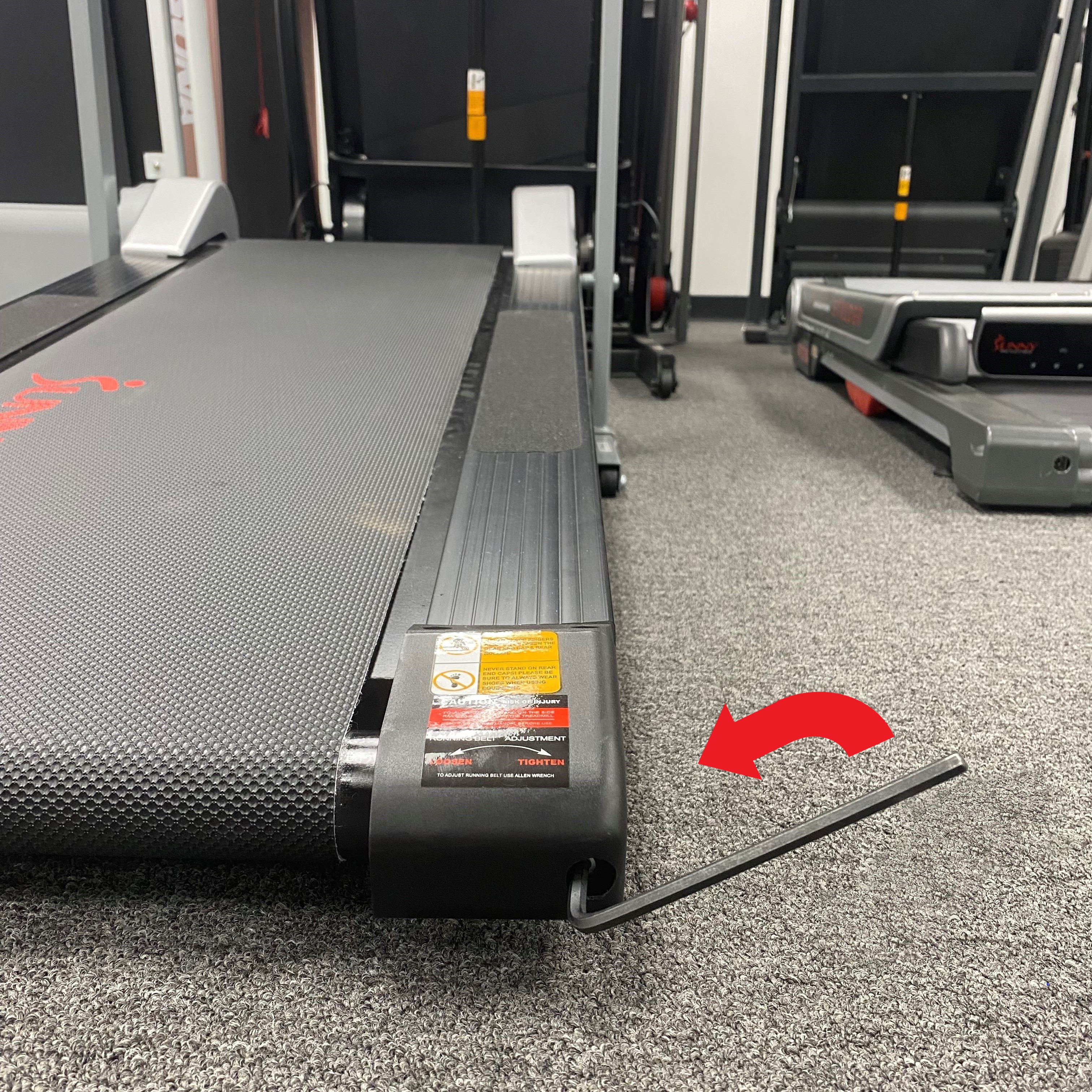

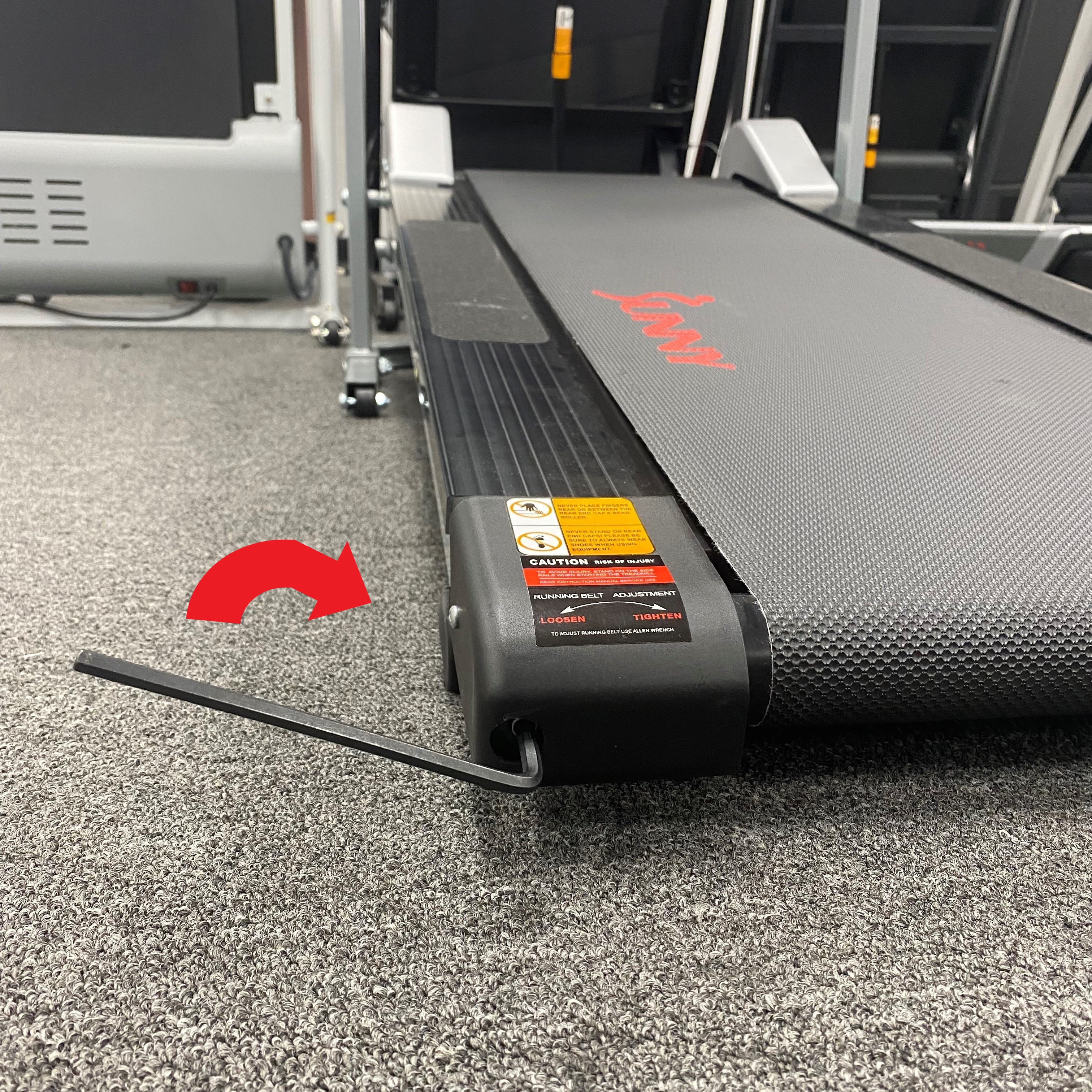

alaigning_running_belt.jpg alaigning_running_belt_3.jpg

For more information, please see the video below:
