SF-T7718 Motor Calibration

Updated
Permanently deleted user
Have more questions? Submit a request

SF-T7718 How to Calibrate the Motor

STEP 1: Remove the Safety Key.

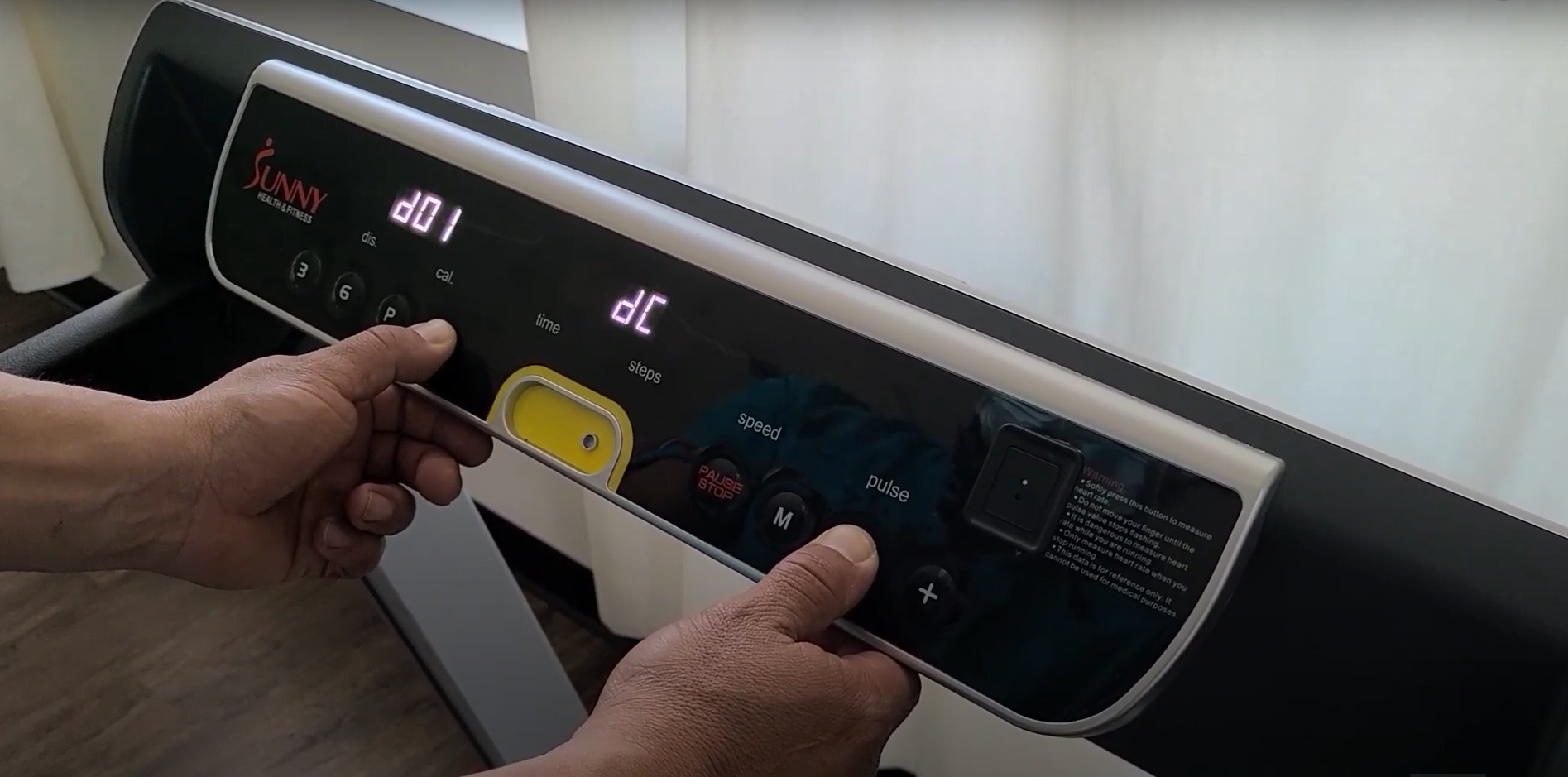

STEP 2: Press and Hold "Start" & "-" until you see "d01 dC".

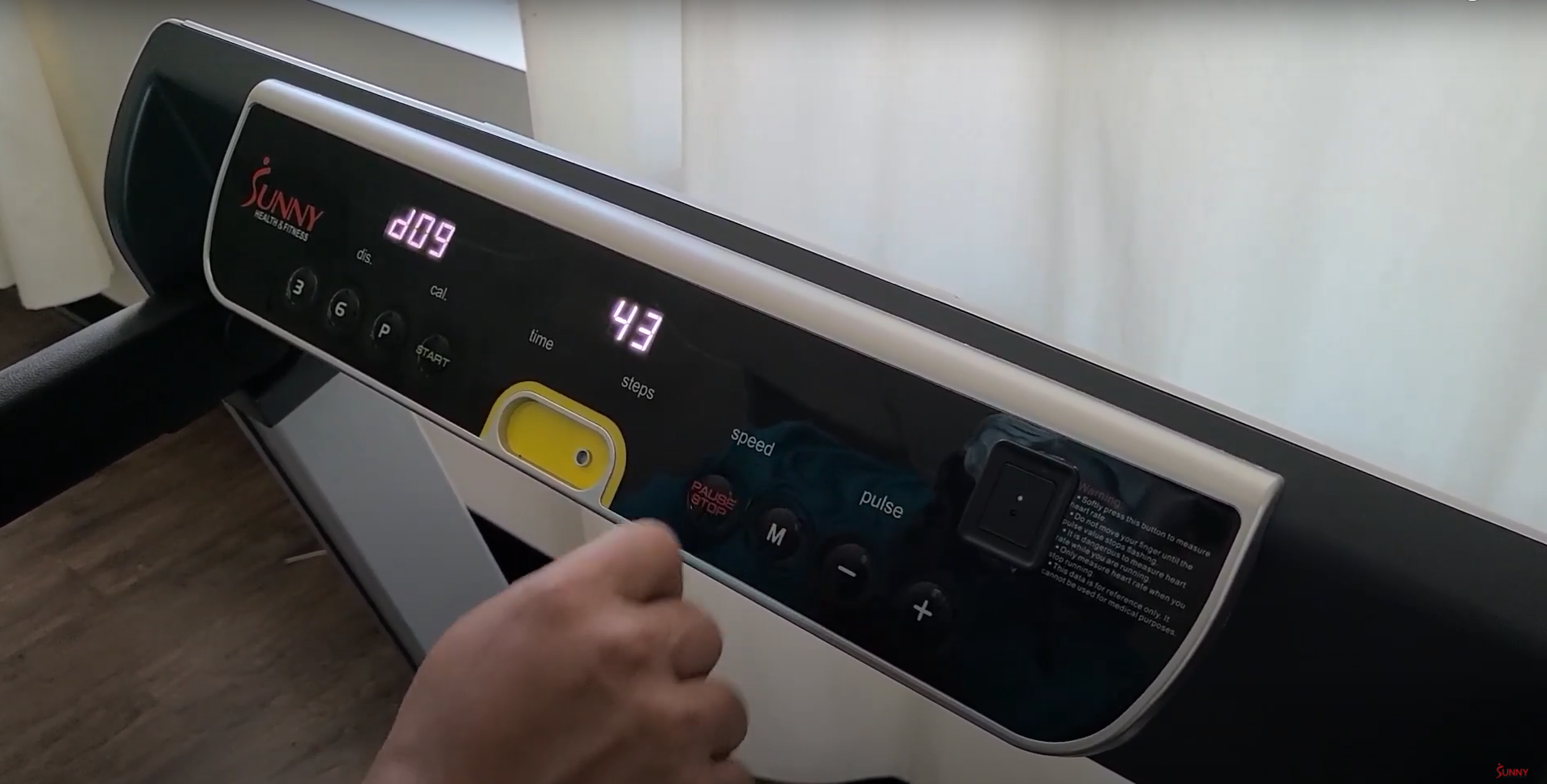

STEP 3: Press "M" until you see "d09"


STEP 4: Press "-" or "+" to increase or decrease the speed by "5" depending on the motor speed, then place the safety key back on.


Note: If it does not work the first time, please repeat the process until the motor has been calibrated.

For more information, please see the video below.
