FA 7967: How To Replace the Computer

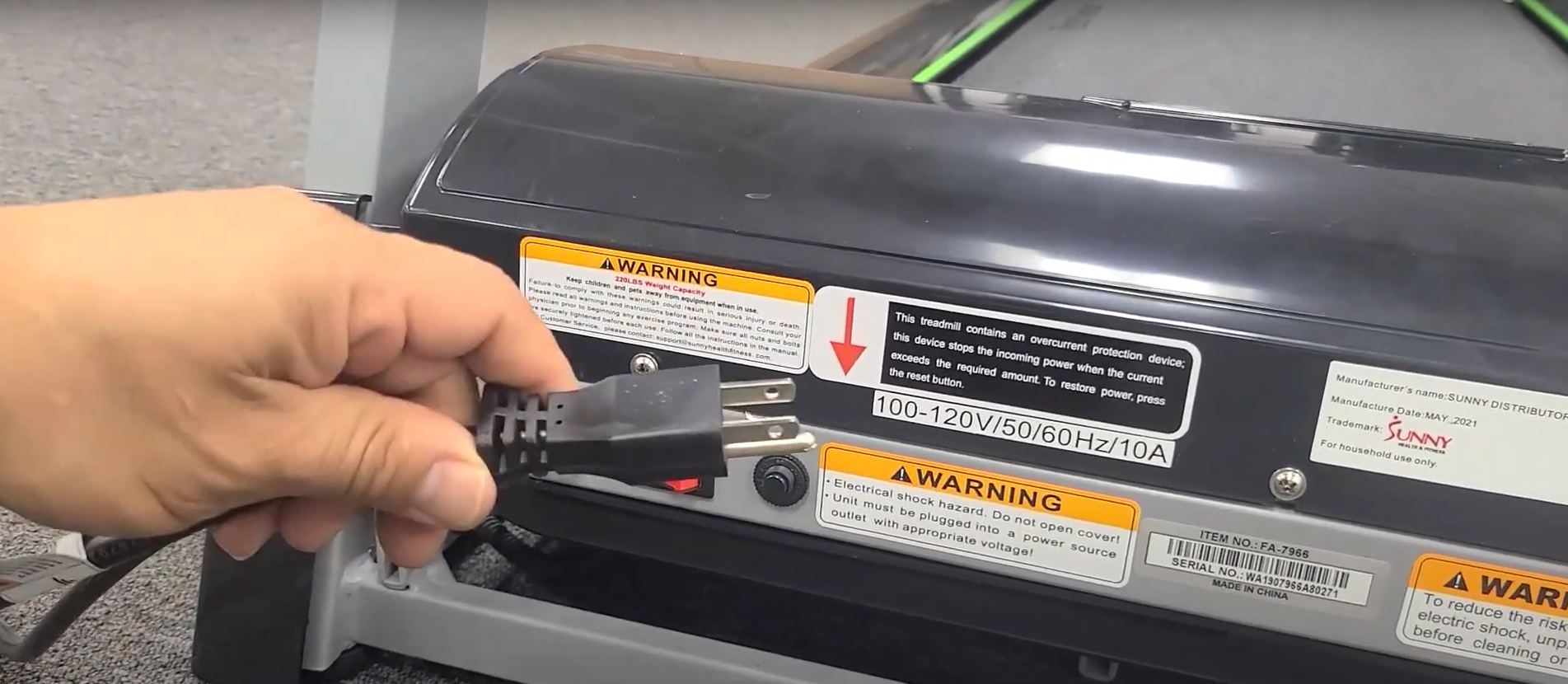

STEP 1: Turn off the treadmill and remove the power cord from the outlet.

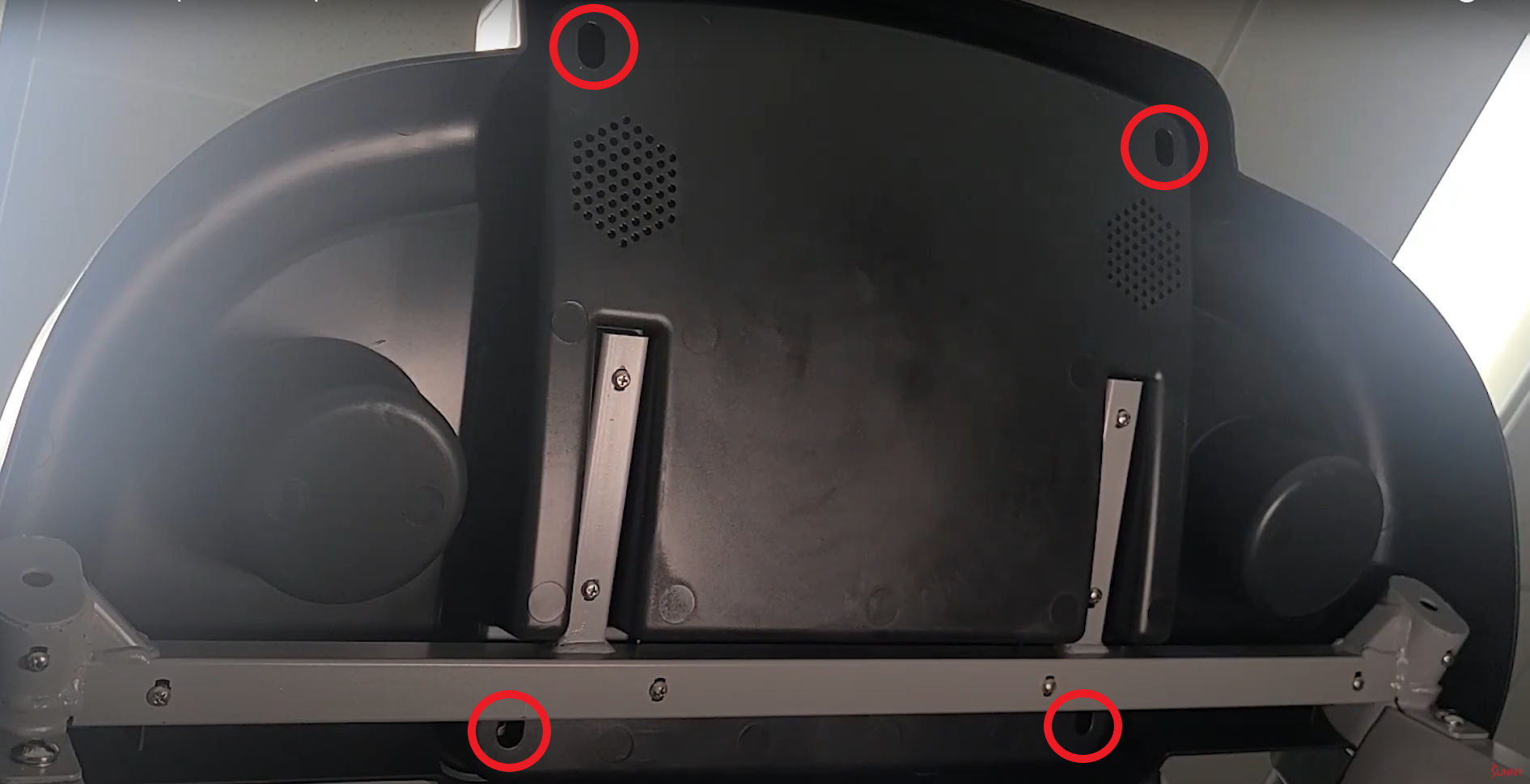

STEP 2: Remove the four screws behind the computer.

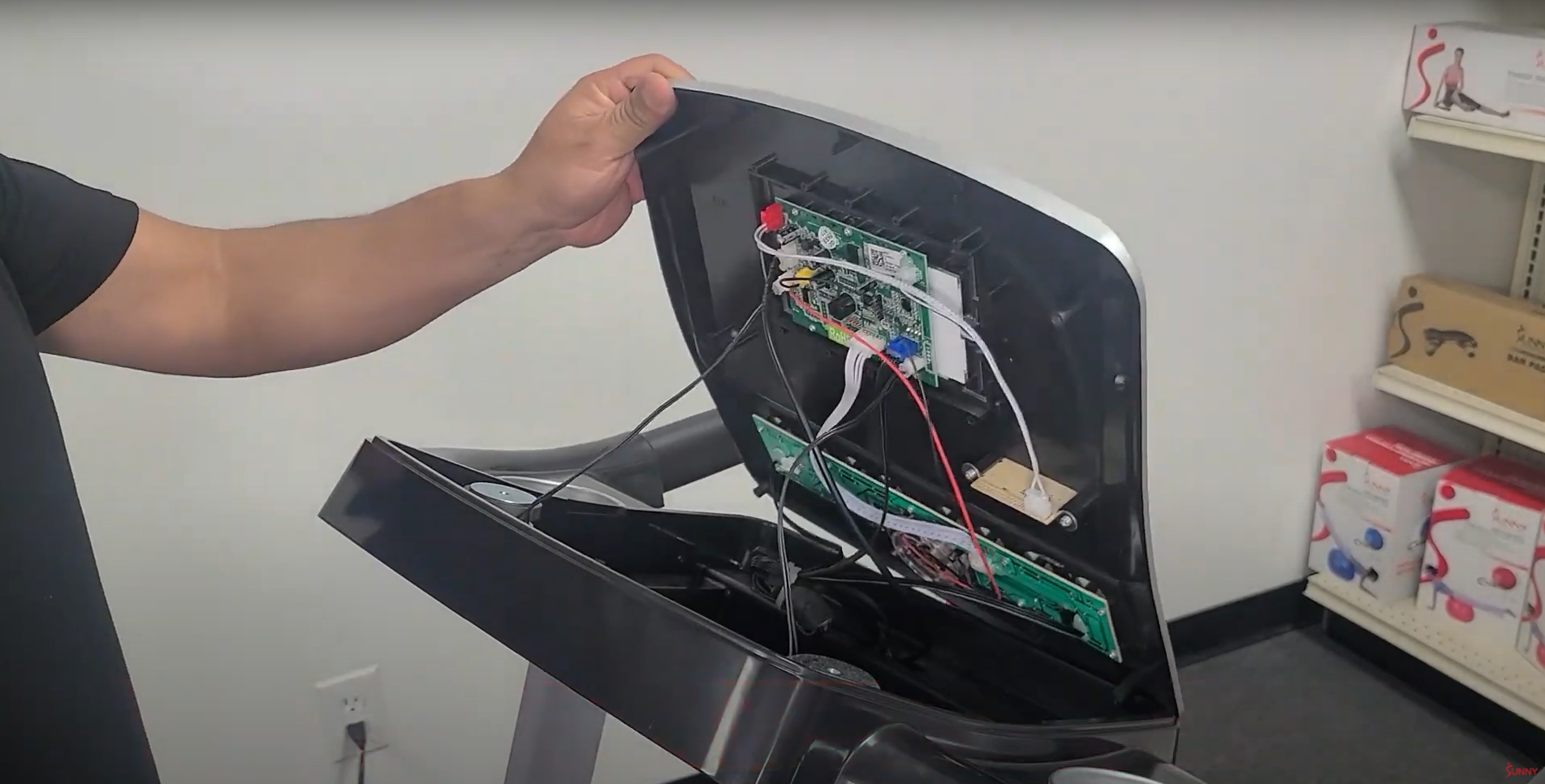

STEP 3: Carefully lift the Computer from the upper console.

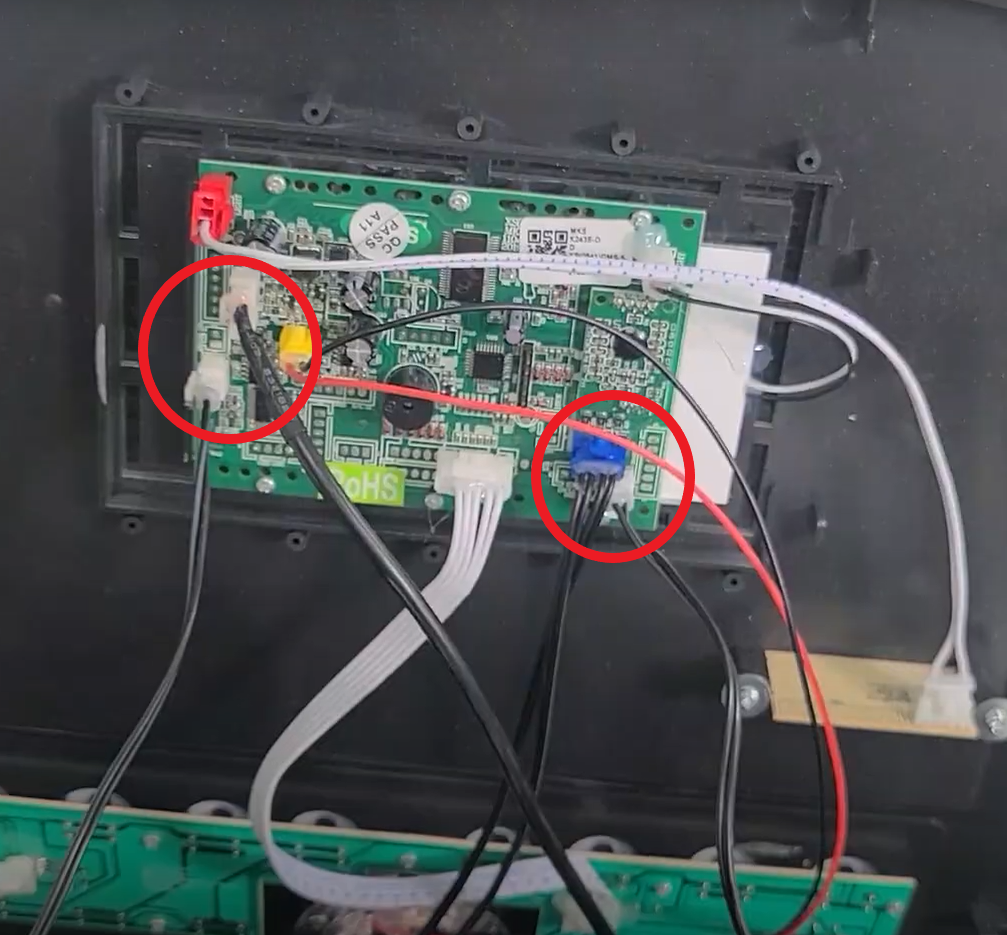

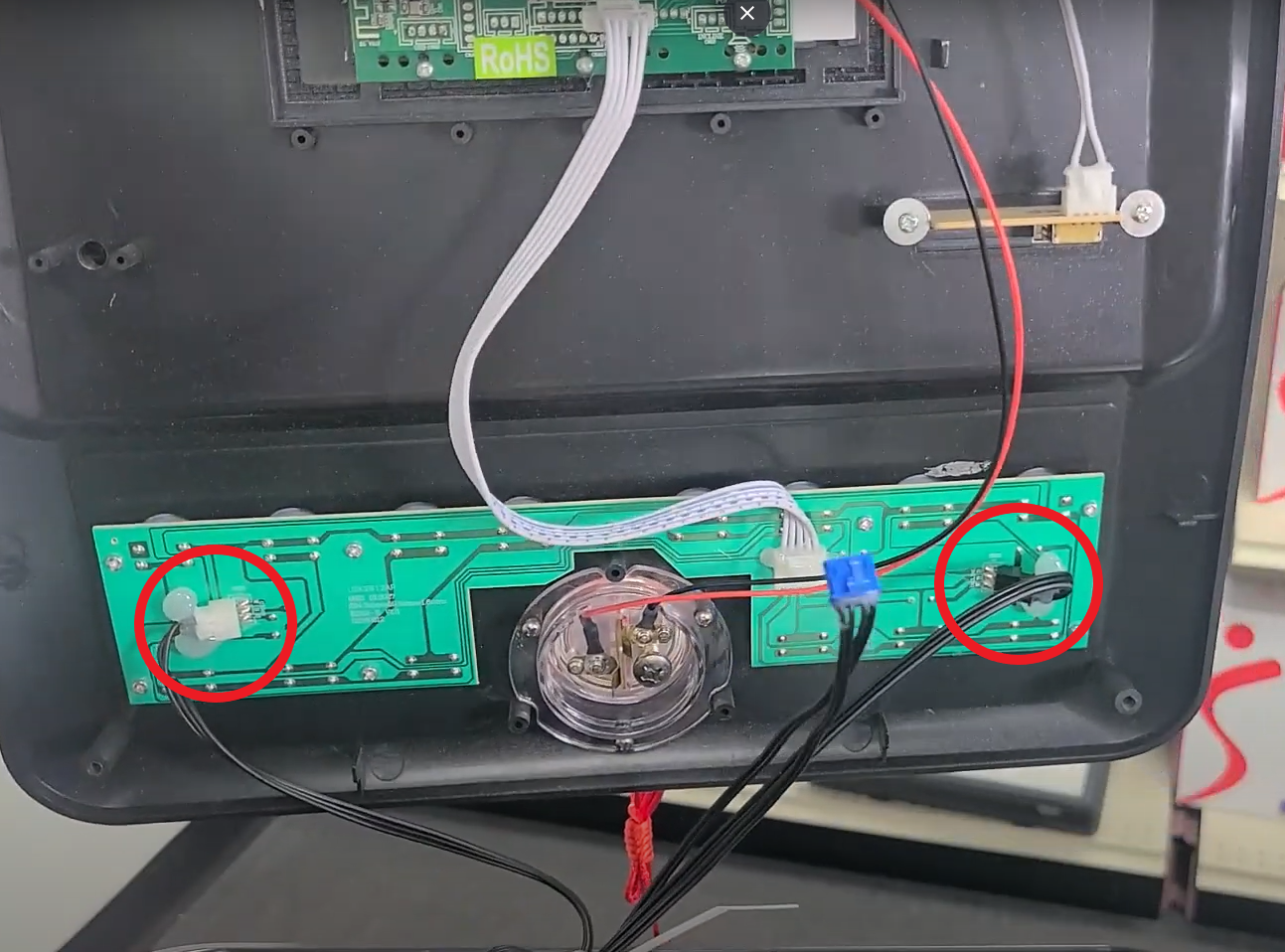

STEP 4: Remove the wires that connect to the top console. There are 6 wires in total.

FA7967_Comp_Step4.PNG FA7967_Comp_Step4A.PNG

STEP 5: Reinstall the wires onto the new computer.

STEP 6: Place the new computer onto the upper console.

STEP 7: Reinstall the 4 screws that go on the back of the upper console.



For more information, please see the video below:
