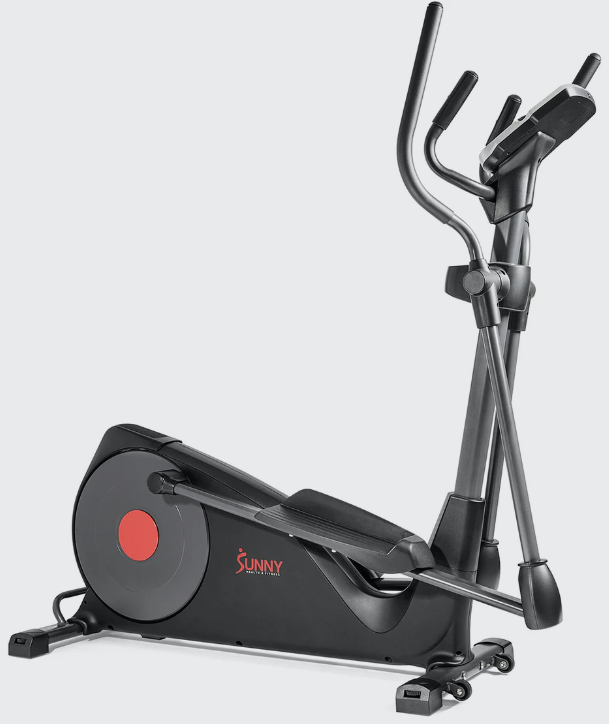

SF-E320001 Pre-Programmed Elliptical Trainer with 18 inch Stride

Comprehensive Guide

Welcome to our detailed maintenance guide for the SF-E320001 model. This article provides a comprehensive overview of the essential repair and replacement tasks for your equipment, including:

• Component Removal: Instructions for removing the right and left pedal supports and covers, cycle plates, crank, and belt wheel with bearings.
• Replacement Procedures: Detailed steps for replacing the crank, flywheel and belt, motor, DC cable, and sensor wire.
• Reassembly: How to reinstall the covers and pedal supports, and replace the sensor wire on the handlebar.
• Troubleshooting: Guidance on addressing motor signal issues with no induction.

Each section is time-stamped for easy navigation, allowing you to efficiently complete maintenance tasks and troubleshoot any issues with your equipment.

TABLE OF CONTENTS

🔧 00:17 | How to remove the right pedal support and cover
🔧 01:59 | How to remove the left pedal support and cover
🔧 02:46 | How to remove cycle plates
🔧 04:10 | How to remove the crank
🔧 05:36 | How to remove the belt wheel and bearings.
🔧 09:00 | How to install the crank
🔧 10:07 | How to replace the flywheel and belt
🔧 12:31 | How to replace the motor
🔧 15:56 | How to replace the DC cable
🔧 17:53 | How to replace sensor Wire
🔧 20:24 | How to install the covers and pedals Support.
🔧 23:55 | How to replace the sensor wire on the handlebar
🔧 25:50 | TROUBLESHOOTING (The motor signal has no induction)

For additional questions, please see the video below:
