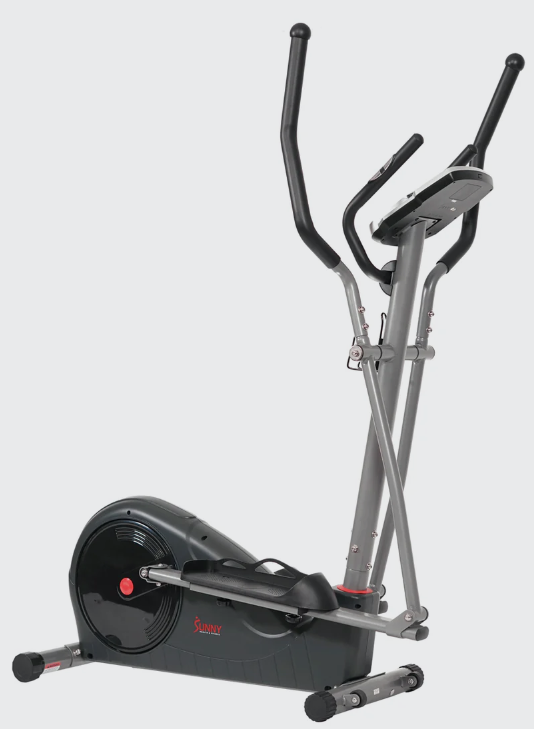

SF-E320002 Magnetic Elliptical Machine Pre-Programmed Trainer

Comprehensive Compilation Guide



Welcome to our maintenance guide for the SF-E320002 model. This article offers a comprehensive overview of key repair and replacement procedures to keep your equipment running smoothly.

Component Removal: We’ll guide you through the steps to remove essential parts, including the pedals, covers, X-cranks, belt, flywheel, and more.

Part Replacement: Follow our detailed instructions for replacing the belt wheel, motor, and other critical components, ensuring everything is up to standard.

Reassembly: Learn how to properly reinstall the covers, pedal supports, and the meter, so your machine is back in action in no time.

Each section is time-stamped for easy navigation, allowing you to efficiently tackle maintenance tasks and maintain optimal performance of your equipment.





TABLE OF CONTENT

πŸ”§ 00:10 | How to remove the pedals
πŸ”§ 01:55 | How to remove the covers
πŸ”§ 02:52 | How to remove the X-cranks
πŸ”§ 05:07 | How to remove the belt
πŸ”§ 05:18 | How to remove the flywheel
πŸ”§ 06:00 | How to remove the shaft from the flywheel
πŸ”§ 09:55 | How to install the flywheel and belt
πŸ”§ 10:23 | How to replace the belt wheel
πŸ”§ 11:23 | How to install the belt wheel
πŸ”§ 12:05 | How to replace the motor
πŸ”§ 15:23 | How to test the meter
πŸ”§ 19:00 | How to tighten the flywheel and install the belt
πŸ”§ 20:10 | How to install the meter post
πŸ”§ 21:22 | How to install the covers
πŸ”§ 22:38 | How to install the X-cranks
πŸ”§ 24:33 | How to install the meter
πŸ”§ 25:10 | How to install the pedal support and arm swing



For more information, please see the video below:
