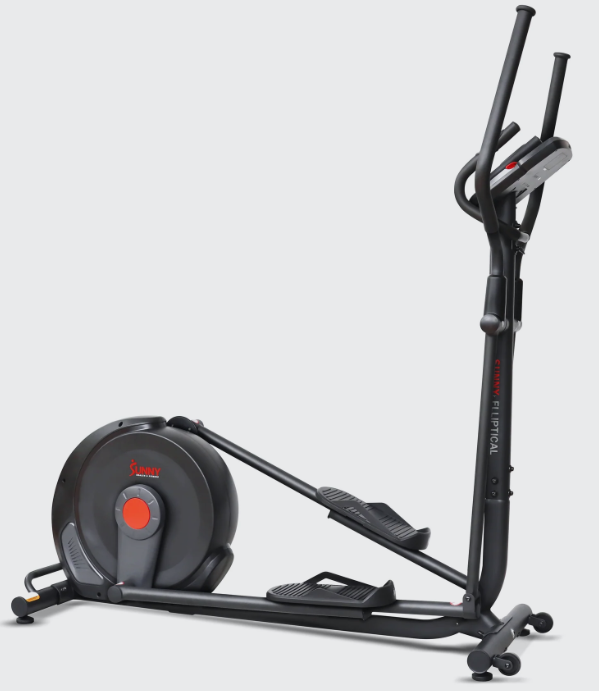

SF-E321006 Power Stride Advance Elliptical Machine

Comprehensive Guide

Welcome to our comprehensive maintenance guide for the SF-E321006 model. This article outlines the step-by-step procedures necessary for effective repairs and replacements:

• Component Removal: Detailed instructions for removing the left and right pedal supports, cranks, and screw covers, as well as the main covers.
• Part Replacement: Step-by-step guidance on replacing the belt, belt wheel, motor gear, and crank cover.
• Reassembly: Tips for reassembling the covers and securely installing the left and right cranks and pedal supports, along with the DC connector.

Each section is time-stamped for easy navigation, ensuring you can efficiently perform maintenance tasks and keep your equipment in optimal condition.

TABLE OF CONTENT

🔧 00:10 | How to remove the left pedal support
🔧 00:30 | How to remove the left crank
🔧 01:30 | How to remove the left screw cover
🔧 01:48 | How to remove the right pedal support
🔧 02:10 | How to remove the right crank
🔧 02:46 | How to remove the right screw cover
🔧 03:00 | How to remove the covers
🔧 03:49 | How to replace the belt
🔧 04:35 | How to replace the belt wheel
🔧 05:53 | How to install the belt wheel
🔧 06:43 | How to install the belt
🔧 08:18 | How to replace the motor gear
🔧 12:36 | How to replace the crank cover
🔧 13:51 | How to install the covers
🔧 14:21 | How to install the DC connector on the cover
🔧 15:53 | How to install the left crank
🔧 15:53 | How to install the right crank
🔧 18:21 | How to install the right pedal support
🔧 19:04 | How to install the left pedal support

For more information, please see the video below:
