SF-B2883 - Magnetic Upright Programmable Exercise Bike Assembly

SF-B2883 Assembly

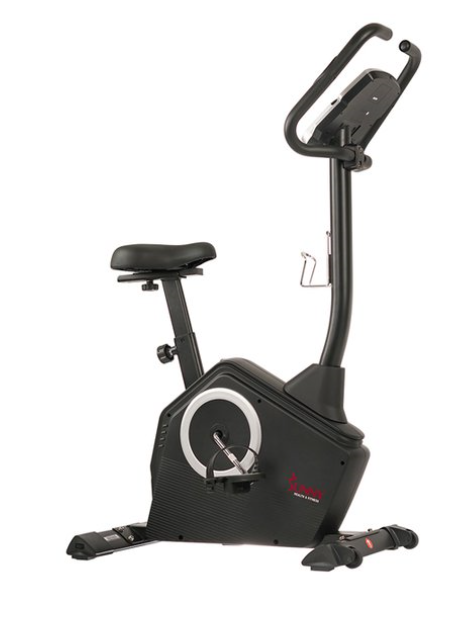

Magnetic Upright Programmable Exercise Bike

This video will guide you through the assembly of your Sunny Health & Fitness Upright Bike, SF-B2883. Inside your package, you’ll find all the necessary tools, a hardware package, and a user manual to make the setup process smooth and straightforward. Each section is time-stamped for your convenience, making it easy to navigate and complete the necessary assembly process.

TABLE OF CONTENT

🔧 0:10 | Remove the preassembled screws from the rear stabilizer
🔧 0:19 | Attach the rear stabilizer to the main frame
🔧 0:38 | Remove the preassembled screws from the front stabilizer
🔧 0:45 | Attach the front stabilizer to the main frame
🔧 1:10 | Attach the right pedal to the right crank; Tighten clockwise
🔧 1:26 | Attach the left pedal to the left crank; Tighten counter-clockwise
🔧 1:36 | Remove the four screws from the main frame
🔧 1:45 | Connect the trunk wire to the sensor wire
🔧 2:04 | Attach the handlebar post to the main frame
🔧 2:20 | Remove the nuts & flat washers from the seat
🔧 2:29 | Attach the seat to the seat slider
🔧 2:51 | Attach the seat glider to the seat post
🔧 2:56 | Insert the seat post into the main frame
🔧 3:00 | Remove the four screws from the monitor
🔧 3:05 | Connect the trunk wire to the monitor wire
🔧 3:11 | Connect the monitor to the handlebar post
🔧 3:18 | Remove the bolts from the handlebar post
🔧 3:23 | Attach the handlebar to the handlebar post
🔧 3:35 | Insert the pulse wire into the monitor
🔧 3:40 | Attach the handlebar cover to the handlebar
🔧 3:42 | Remove the bolts from the handlebar post
🔧 3:54 | Attach the bottle holder to the handlebar post

At Sunny Health & Fitness, we’re dedicated to ensuring you have the best experience with our products. For any assistance with parts or troubleshooting, please don’t hesitate to reach out to us at support@sunnyhealthfitness.com or call us at (877) 907-8669.

Additionally, you can access the user manual directly through this link: SF-B2883 User Manual for convenient reference throughout your assembly process.
