Replacing The Wheels On A Cardio Climber Elliptical Machine: E3911, E3914 and E3919

How to replace the wheel on a Cardio Climber



Here is a quick guide instructing you on the proper procedure to successfully replace the wheel on your cardio climber machine.

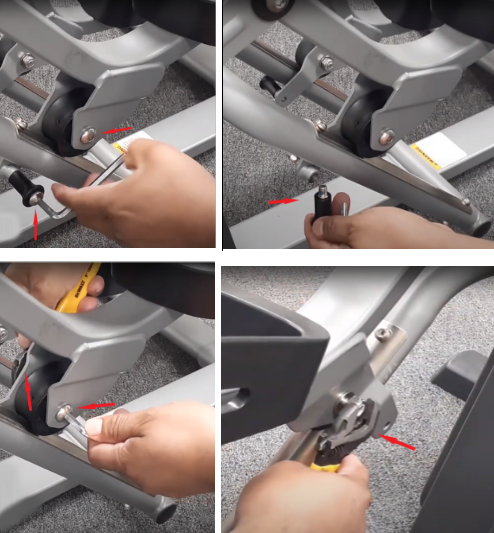

STEP 1: Using Allen Key #6 and an adjustable wrench, remove the bolt, washer, and nut.

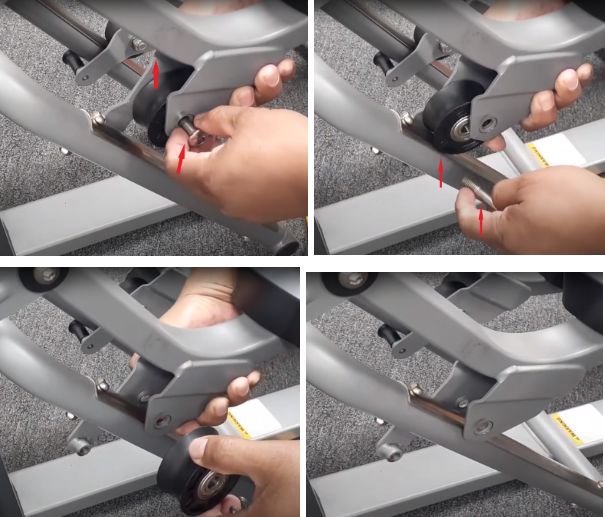

STEP 2: Lift the pedal support to remove the bolt and wheel.

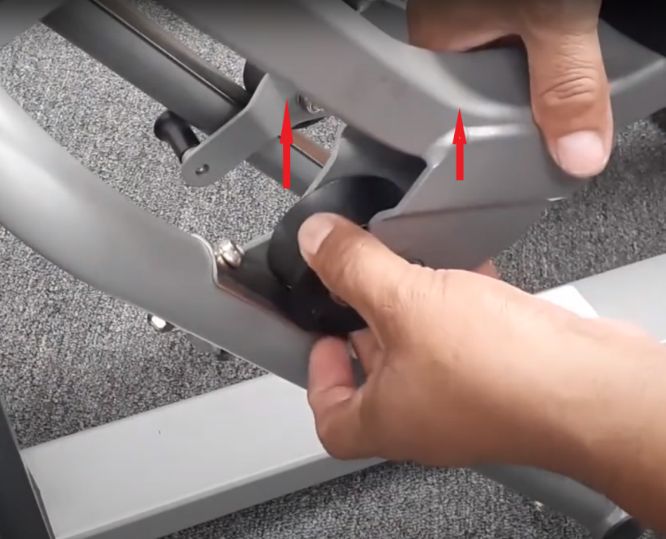

STEP 3: Lift the pedal support to install the new wheel.

A picture containing person, exercise device, nail, hand

Description automatically generated

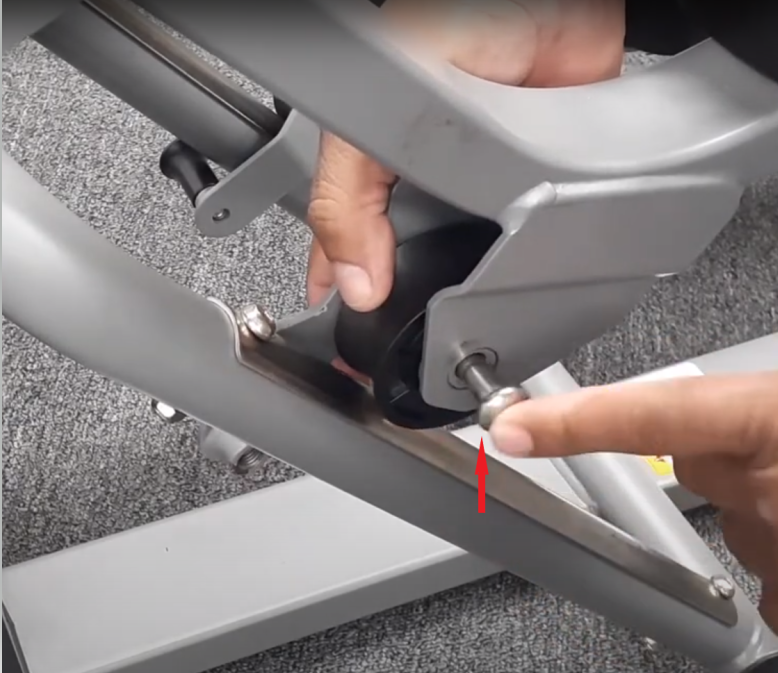

STEP 4: Hold the wheel and lift the pedal support to install the bolt.

A picture containing person, exercise device

Description automatically generated

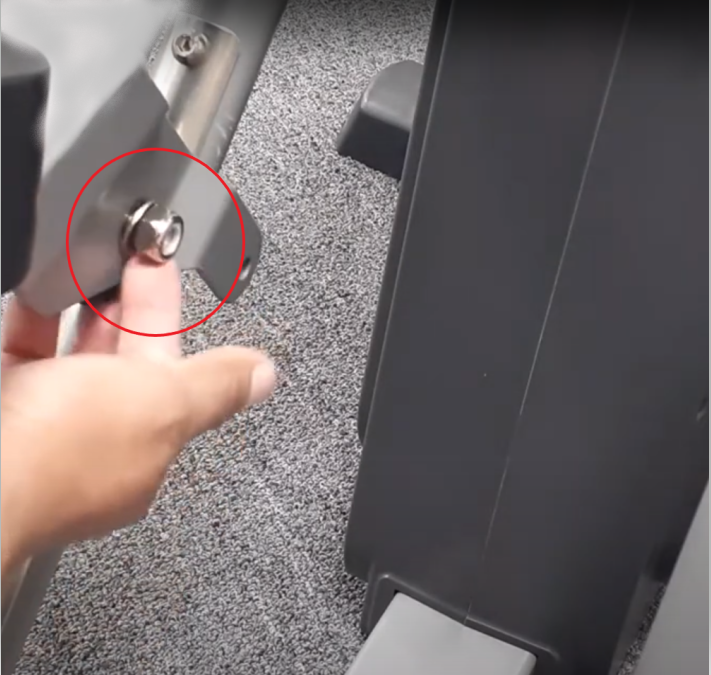

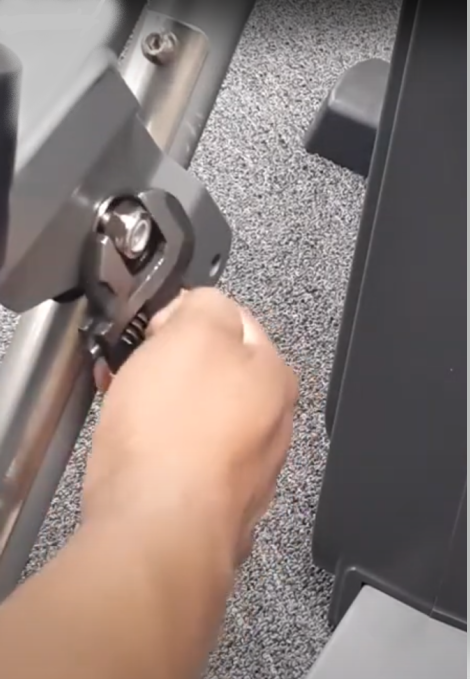

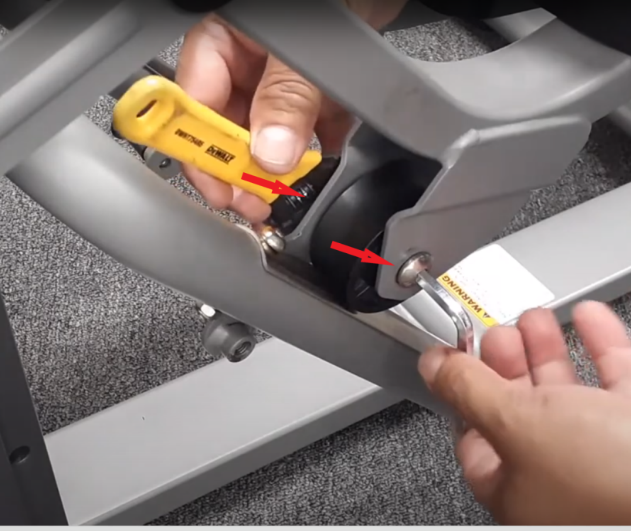

STEP 5: Install the washer and nut on the bolt and begin to tighten.

A picture containing person, hand, indoor, holding

Description automatically generated A hand holding a wrench

Description automatically generated with low confidence A picture containing person, tool, hand, indoor

Description automatically generated

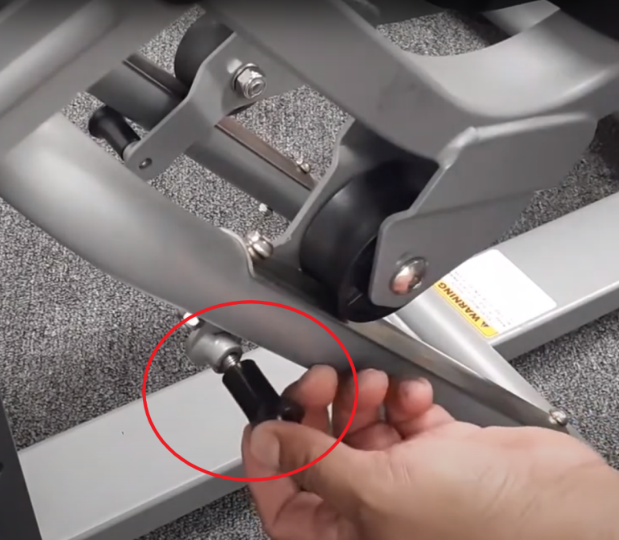

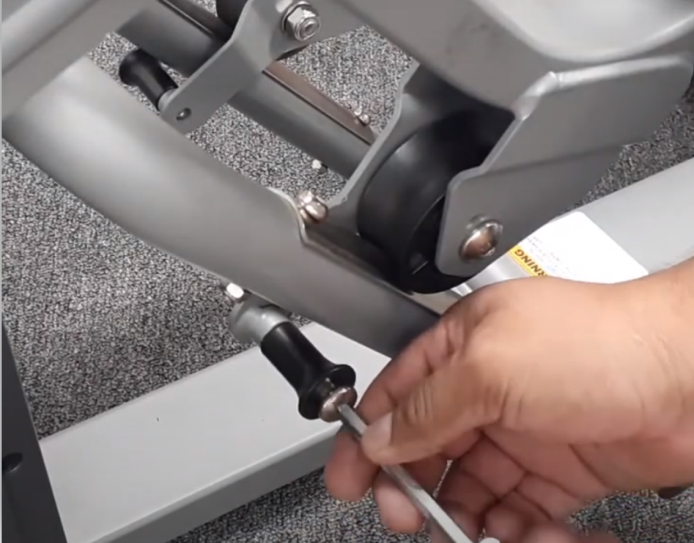

STEP 6: Reinstall the bolt and stopper and proceed to tighten it.

A picture containing person, hand, indoor, lever

Description automatically generated A person holding a screwdriver

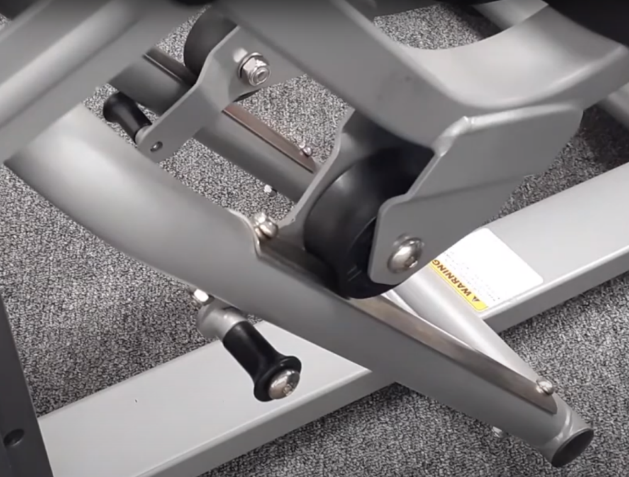

Description automatically generated with low confidence A picture containing sport, exercise device, exercise equipment, exercise machine

Description automatically generated



For more information, please see the video below:
